Potentiostat

Tests et analysis

SPECIFICATIONS

  • Manufacturer : BASi

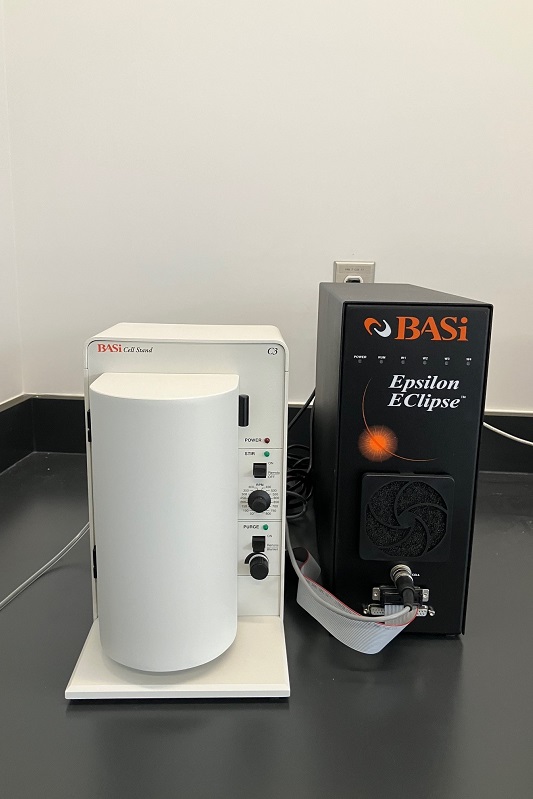

  • Model : EC Epsilon EClipse™+ C-3 Cell Stand
  • Potentiostat mode:
    • Channel 1 applied potential: Dynamic DAC: 16 bit, ±3.275 V @ 0.1 mV resolution or ±10 V @ 0.33 mV resolution
    • Offset DAC: 8 bit, ±2.55 V @ 10 mV resolution
    • Channel 2 applied potential: Dynamic DAC: 8 bit, ±2.55 V @ 10 mV resolution
    • Compliance voltage: ±12 V
    • Maximum current: 100 mA
    • Bandwidth: > 100 kHz
  • Galvanostat mode:
    • Applied current: 50 pA – 50 mA
    • Range: ±10 V, ± 1 V
    • Measured potential resolution: 0.02 mV
    • Max leakage current: 30 pA

USES

  • Determine the electrochemical properties of materials:
    • Oxidation and reduction potential of polymers
    • Energy levels (HOMO-LUMO) of conjugated polymers
    • Cyclic voltammetry, square-wave voltammetry
    • Measures whether a polymer is a semiconductor or not
  • Solution analysis, electrochemistry, redox potential measurements
