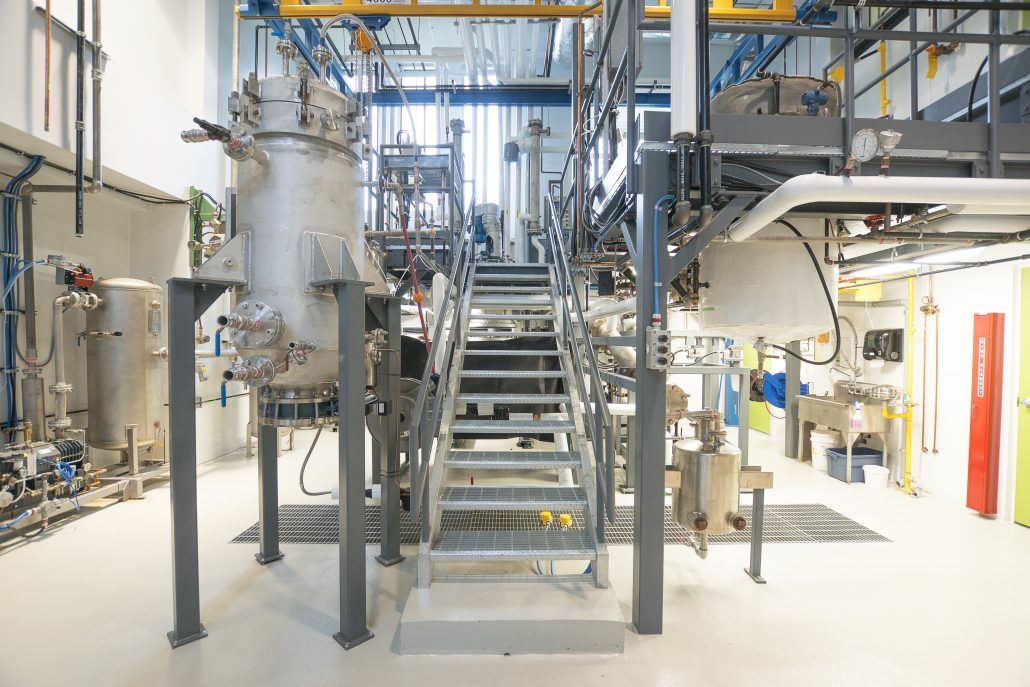

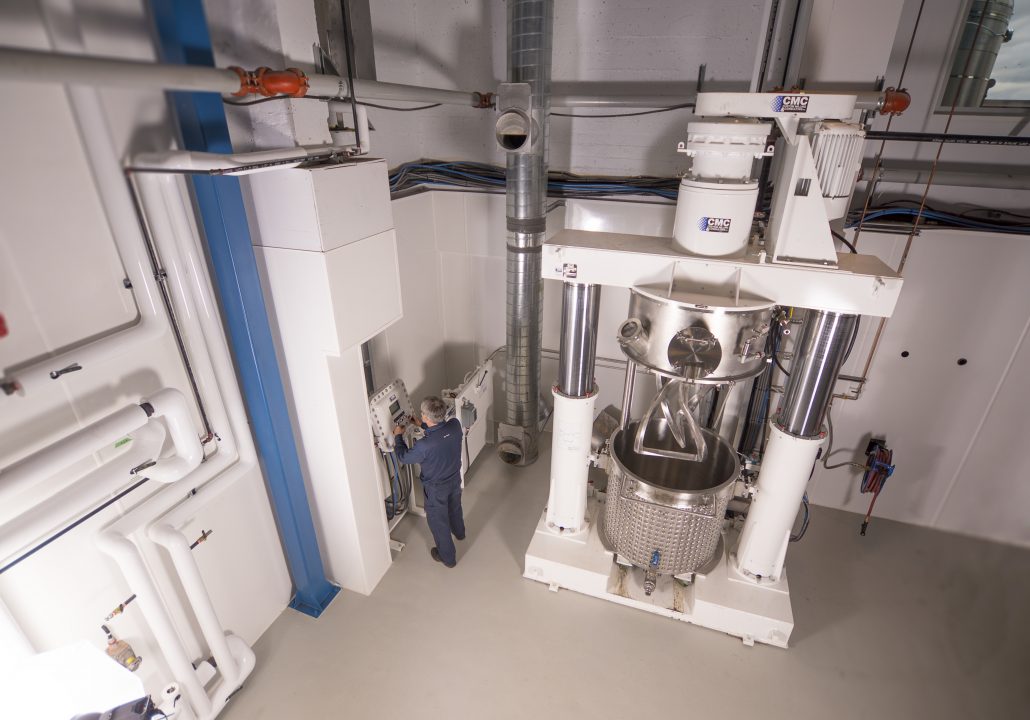

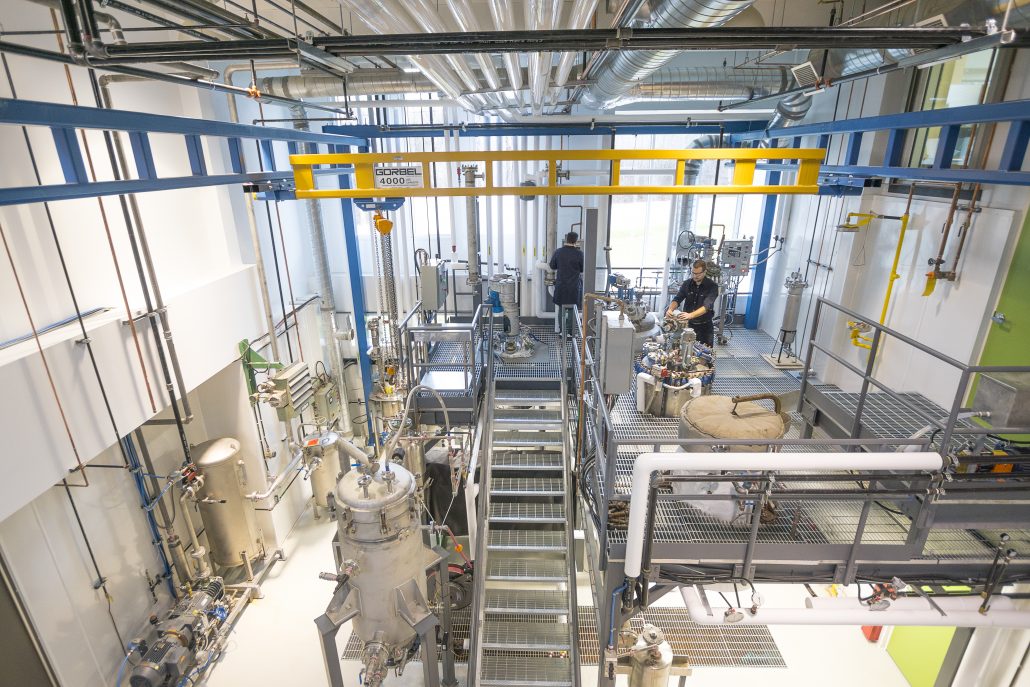

Pilot plant

SPECIFICATIONS

  • Dimensions : 30′ x 25′ x 24′
  • Ventilation : 7,7 air changes per hour
  • Utilities :
    • Thermal fluid 250ºC
    • Steam 150 psig
    • Cooling circuit
    • Nitrogen
    • Compressed air
    • Propane
    • Demineralized water
    • Vacuun
    • ½” and 1½” diaphragm transfer pumps
    • High pressure dosing pump
    • Centrifugal pumps
  • Storage :
    • Interior on palletier
    • Outdoor enclosures for flammable products
    • Two vertical grade 316 stainless steel tanks with a capacity of 1050 gallons (3970 L) each

PARTICULARITY

  • Explosion-proof installation

USE

  • Allows the scalling up of processes developed in the laboratory, the last step of the research and critical step of the transfer in company.
  • Allows the production in large quantities of chemicals (from the scale of the kilogram to the ton).
  • Allows the adaptation of existing technologies.
