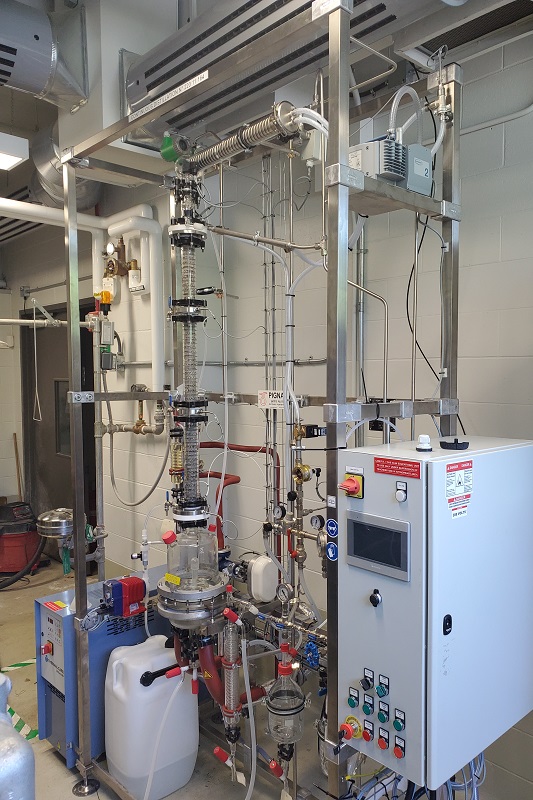

Continuous/Batch distillation pilot

Pilot plant

SPECIFICATIONS

  • Manufacturer: PIGNAT
  • Pressure: around 150 mbar to atmospheric pressure
  • Temperature: form room temperature to 180°C (356°F)
  • Boiler size: 5 L (1,32 US gal)
  • Feeding Flow for continuous process: maximum 16 L/h (4 US gal/h)
  • Column packed with Sulzer (around 20 theoretical plates)
  • Column packed with glass Raschig ring (around 5 theoretical plates)

PARTICULARITY

  • Can process corrosive mixture by configuring the pilot to have the feed line, the column in glass or Teflon material.

USE

  • Use for separating liquid mixture with different boiling point.
  • Continuous or batch distillation.
