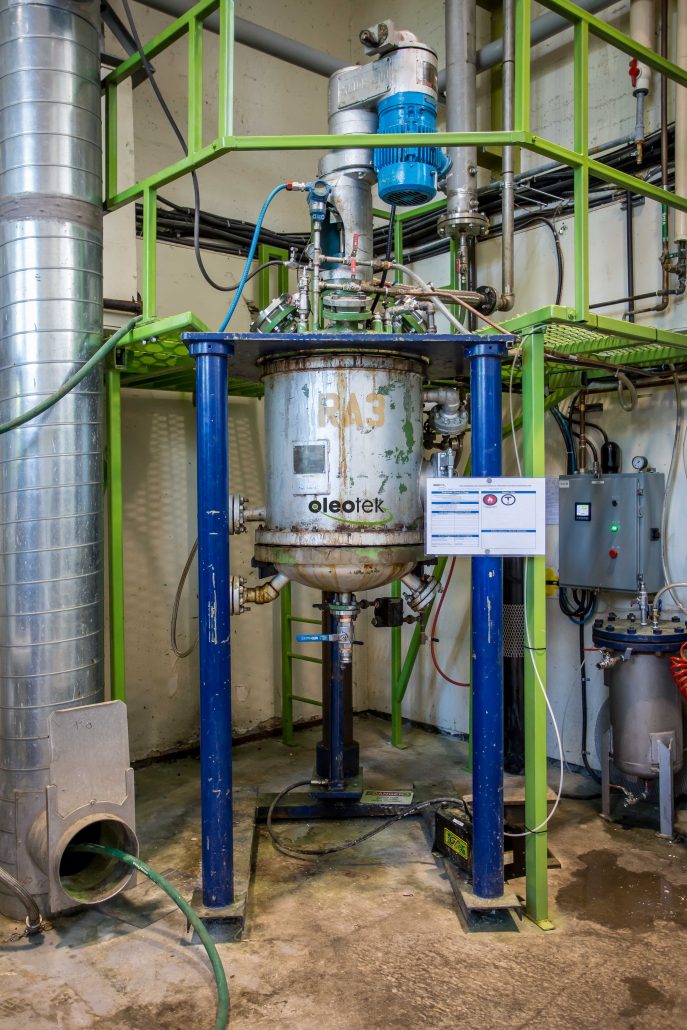

Pilot Reactor (200L)

Pilot plant

SPECIFICATIONS

  • Vessel :
    • Maximum operating pressure : 100 psi
    • Maximum operating temperature : 500ºF (260ºC)
  • Jacket :
    • Maximum operating pressure : 100 psi
    • Maximum operating temperature : 500ºF (260ºC)
  • Heating :
    • Mode : Steam 100 psi
    • Maximum temperature : 338ºF (170ºC)
  • Agitation : 100 to 350 rpm

PARTICULARITY

  • Is composed of three parts : the bottom that lowers, the fixed top and the moving central part.
  • Can be used as a filter (Filter bottom) : 3 ft² filter surface and 24″ diameter

USE

  • Used for the synthesis of reinforced natural materials. Its filter bottom allows the synthesis of solid products.
